Model VP

Other basket-type centrifugual separator Continuous pusher model


  • Serial operation does not necessarily need attendance of the operator.
  • A low water (oil) content rate is attainable from the large dehydrating zone.
  • The model needs a small space but the processing ability is high.
  • Small and simple structure.
  • The processed substance is extrusion -discharged from the upper basket and discharged to the lower area from inside the casing.(An upper discharge model is also available.)
  • The model can be operated easily as appropriate for the processed substance and processing volume.
  • The number of consumable parts is small because of direct driving.

Drawing of appearance size

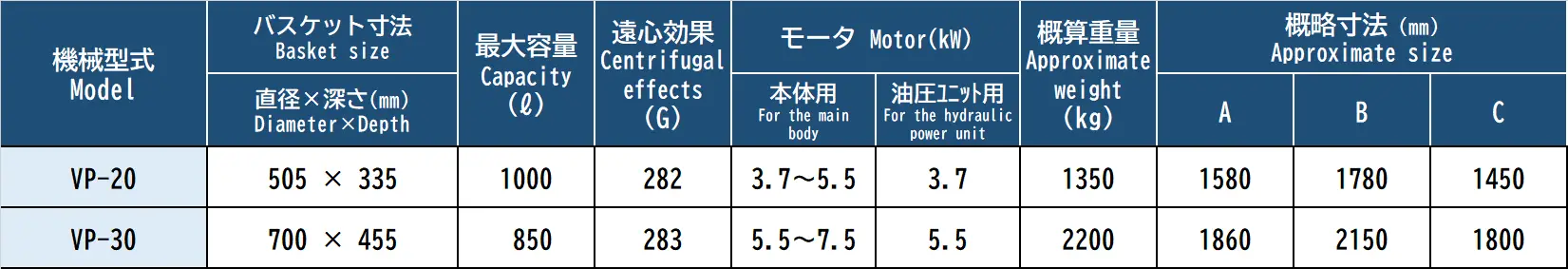

The larger Model VP-48 is also available.Consult with TANABE individually regarding suitable target substances.

Please feel free to contact us for any inquiry.
