Model ACE

Automatic basket type centrifugal separator High-power casing opening and closing system


  • Compliant with GMP validation.
  • Casing opening and closing system (Model 500 incorporates a top opening / Closing System. Model 900 and Model 1300 are fixed units.)
  • Intra-machinery cleaning, cloth replacement and intra-machinery inspection / checking are easily performed.
  • The model is applicable to the treatment of other product categories.
  • Sanitary specifications are also availabe.
  • Reduction of cycle time and high-power operation are achieved.
  • The model is operable at a number of revolutions as appropriate for the description of the treated substance.
  • The model has a broad filtering area and large capacity.

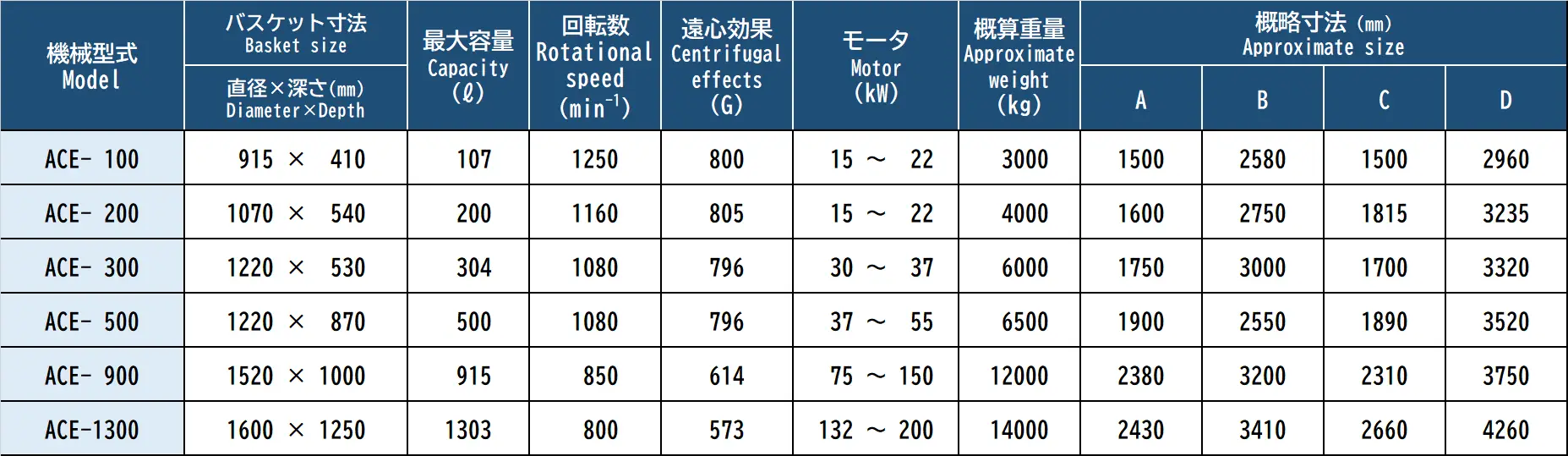

Exterior dimensions

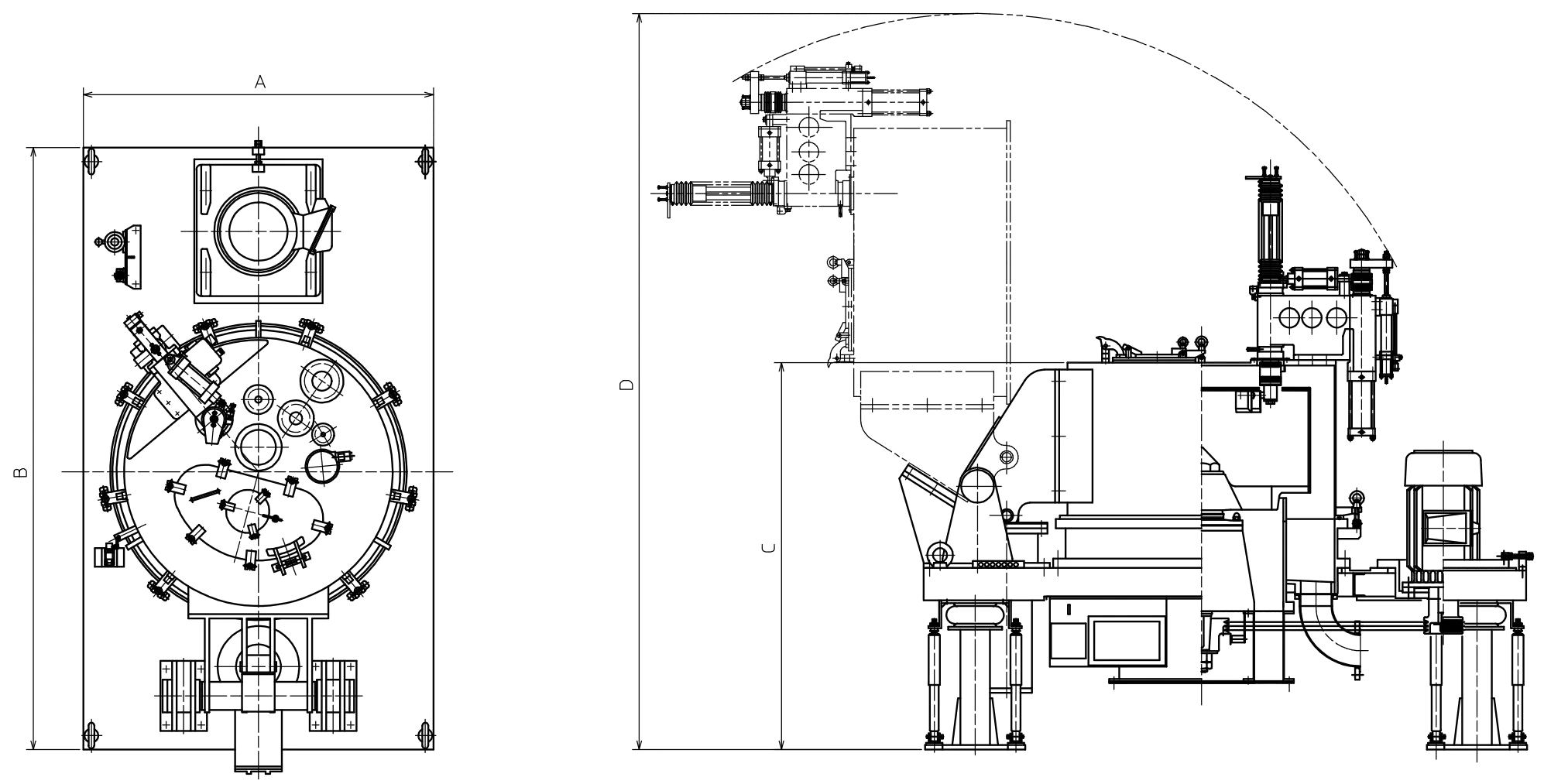

Drawing of appearance size


※Consult with TANABE individually if apparent specific gravity of the wet cake is heavy.
※Detailed data will be supplied at the time of inquiry.
