Model TEC

Automatic basket-type centrifugal separator Upper suction model


  • Upper suction of the cake reduces contamination.
  • Use of the upper discharge system has realized the gasfight structure of the whole device.
  • The device is shorter than the bottom discharge model.
  • The absence of the conveyer in the lower area of the device has realized easy inspection.
  • The model is operable at a number of revolutions as appropriate for the description of the treated substance.
  • The model can be installed in the place subject to explosion-proof requirements
  • All sizes achieve a high centrifugal force (800G).

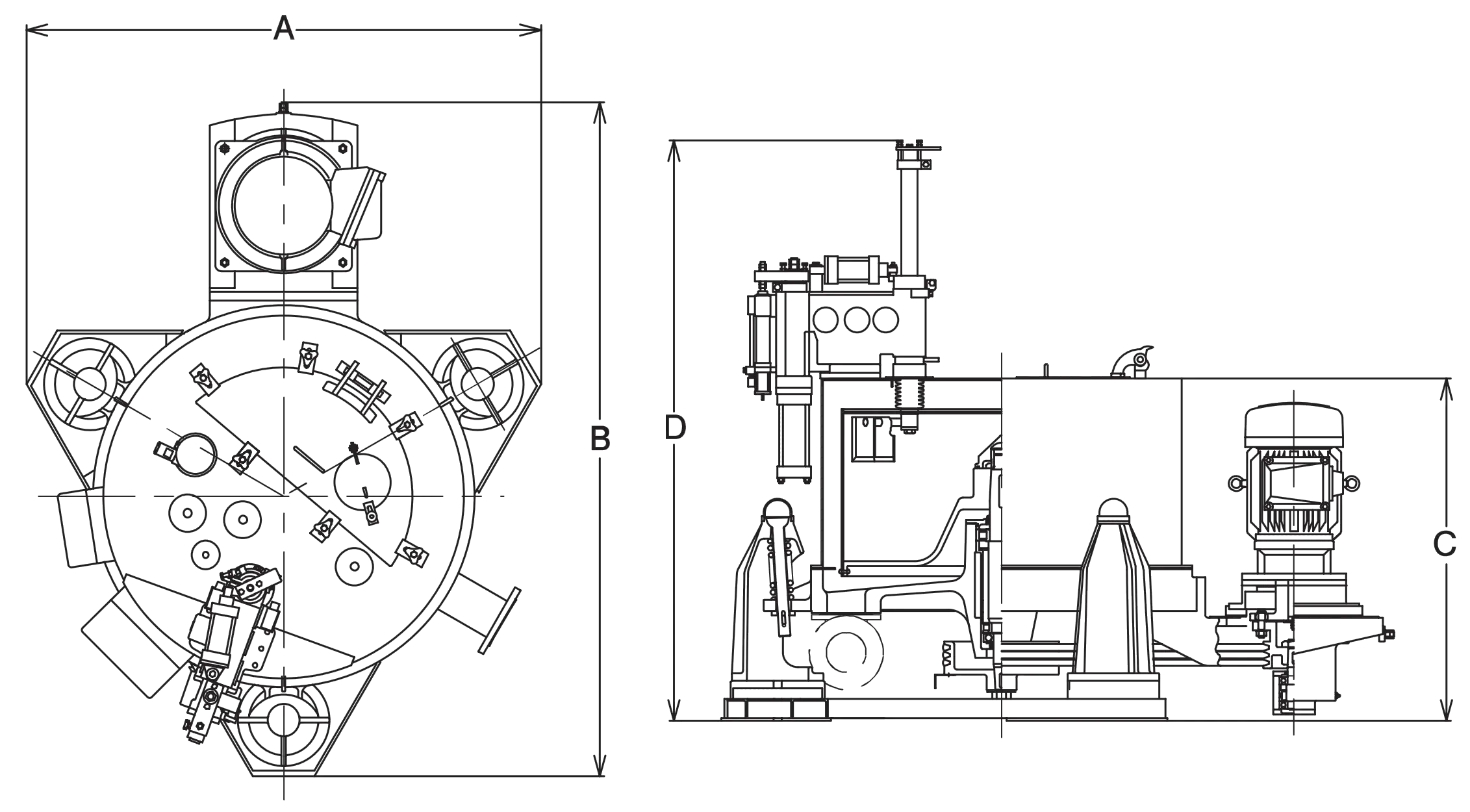

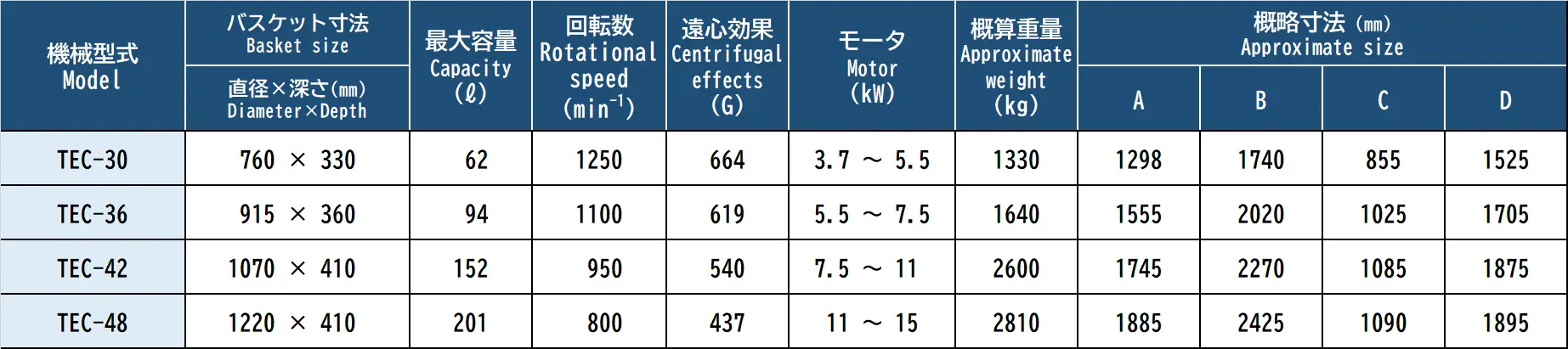

Exterior dimensions


※Consult with TANABE individually if apparent specific gravity of the wet cake is heavy.
※Detailed data will be supplied at the time of inquiry.
